Images are for illustrative purposes only, actual product may differ

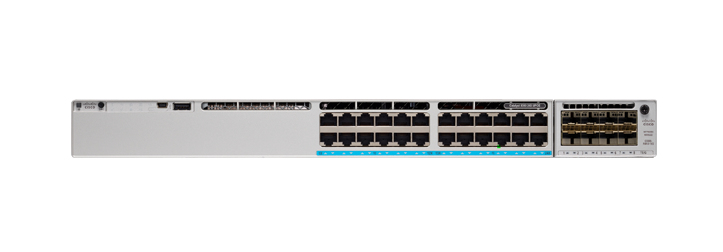

Cisco Catalyst C9300-48U-E network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Grey

Catalyst 9300 48-port UPOE, Network Essentials
In stock
Only 9 left
Part Code:
C9300-48U-E
£4,936.37 £5,923.64
Cisco


The Cisco® Catalyst® 9300 Series Switches are Cisco’s lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. They are the next generation of the industry’s most widely deployed switching platform. The Catalyst 9300 Series switches form the foundational building block for Software-Defined Access (SD-Access), Cisco’s lead enterprise architecture. At 480 Gbps, they are the industry’s highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch. The Catalyst 9300 Series is designed for Cisco StackWise® technology, providing flexible deployment with support for nonstop forwarding with Stateful Switchover (NSF/SSO), for the most resilient architecture in a stackable (sub-50-ms) solution. The highly resilient and efficient power architecture features Cisco StackPower®, which delivers high-density Cisco Universal Power Over Ethernet (Cisco UPOE®) and Power over Ethernet Plus (PoE+) ports. The switches are based on the Cisco Unified Access™ Data Plane 2.0 (UADP) 2.0 architecture which not only protects your investment but also allows a larger scale and higher throughput. A modern operating system, Cisco IOS XE with programmability offers advanced security capabilities and Internet of Things (IoT) convergence. The foundation of Software-Defined Access Advanced persistent security threats. The exponential growth of Internet of Things (IoT) devices. Mobility everywhere. Cloud adoption. All of these require a network fabric that integrates advanced hardware and software innovations to automate, secure, and simplify customer networks. The goal of this network fabric is to enable customer revenue growth by accelerating the rollout of business services. The Cisco Digital Network Architecture (Cisco DNA™) with SD-Access is the network fabric that powers business. It is an open and extensible, software-driven architecture that accelerates and simplifies your enterprise network operations. The programmable architecture frees your IT staff from time-consuming, repetitive network configuration tasks so they can focus instead on innovation that positively transforms your business. SD-Access enables policy-based automation from edge to cloud with foundational capabilities.
More Information
Part Code: C9300-48U-E
EAN 0889728035729
Specification
Management features
Multicast supportYes
Switch typeManaged
Quality of Service (QoS) supportYes
MIB supportYes
Switch layerL2/L3
Virtual LAN features
VLAN supportYes
Number of VLANs4094
Virtual LAN featuresVLAN Identifier ( VLAN ID)
Data transmission
Number of VLANs4094
Jumbo frames9198
Packet buffer memory16 MB
MAC address table32000 entries
Switching capacity256 Gbit/s
Jumbo frames supportYes
Forwarding rate190.48 Mpps
Performance
Packet buffer memory16 MB
StackableYes
Internal memory8000 MB
Flash memory16000 MB
Technical details
Product colourGrey
StackableYes
Rack mountingYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Network
Networking standardsIEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3ap,IEEE 802.3bz,IEEE 802.3u,IEEE 802.3z
Full duplexYes
VLAN supportYes
Routing entries32000
Number of VLANs4094
Virtual LAN featuresVLAN Identifier ( VLAN ID)
Security
Access Control List (ACL)Yes
DHCP featuresDHCP snooping
Multicast features
Multicast supportYes
Memory
Packet buffer memory16 MB
Internal memory8000 MB
Flash memory16000 MB
Design
Product colourGrey
StackableYes
Rack mountingYes
Operational conditions
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)-5 - 40 °C
Operating relative humidity (H-H)5 - 90%
Operating altitude0 - 3000 m
Weight & dimensions
Width445 mm
Depth445 mm
Height44 mm
Manufacturer Cisco
