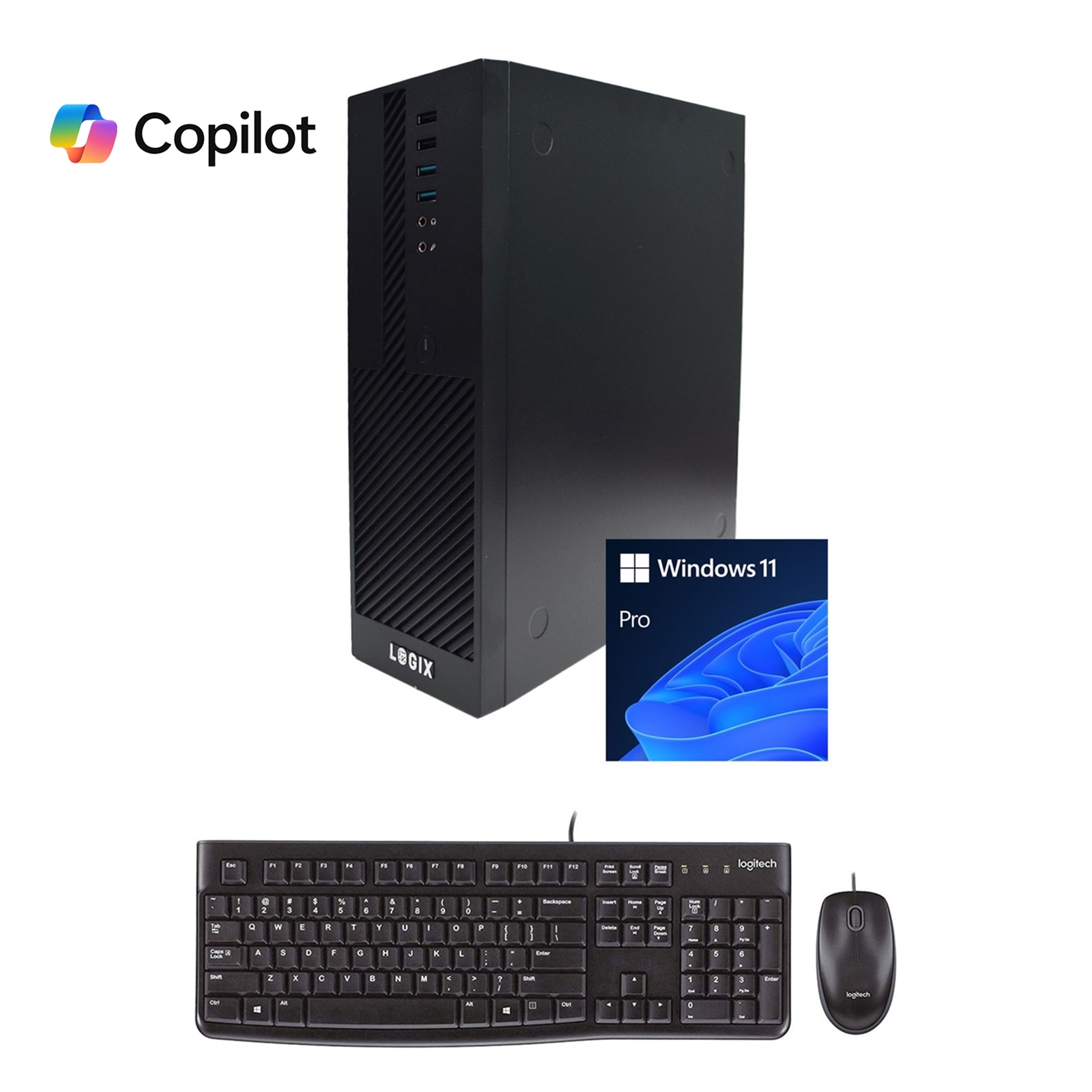

The Ideal Home PC for Power and Discretion. Whether it’s work, school, or entertainment, the LOGIX S4-516H offers a powerful, secure, and compact computing solution tailored for today’s home user.

Powerful, Compact, and Built for Everyday Use
The LOGIX S4-516H is a discreet, small form factor PC designed to deliver powerful performance in a compact package. Perfect for home users juggling large reports, online meetings, browsing, and entertainment, this PC offers reliable speed and ample storage without taking up much desk space.

Efficient Performance for All Your Needs
Powered by a 14th Gen Intel Core i5 processor with 10 cores and 16 threads, running from 3.50GHz up to 4.70GHz turbo boost, this PC handles multitasking and demanding applications smoothly. With 16GB of Kingston DDR4 memory and a 1TB PCIe 4.0 NVMe SSD, it loads programs quickly and manages large files with ease.

Secure and Ready to Use
Built with cyber security in mind, the LOGIX S4-516H features a wired-only internet connection to reduce attack risks. Windows 11 Home comes preinstalled and updated, with no bloatware, so you get a clean, ready-to-go experience. A Logitech MK120 keyboard and optical mouse are included so you can start working right away.

Quality Craftsmanship and Long-Term Reliability
Hand-built in the UK using world-renowned components, this PC is designed for durability and future-proofing. It comes with a 3-year warranty and easy setup instructions in the Quick Start Guide, ensuring years of reliable, secure use.

Key Features
Discreet LOGIX small form factor case balancing compact size and efficient cooling
14th Gen Intel Core i5 processor: 10 cores, 16 threads, 3.50GHz base, 4.70GHz turbo
16GB Kingston DDR4 memory (expandable)
1TB Kingston PCIe 4.0 NVMe SSD for ultra-fast storage and file access
Wired-only internet connection for enhanced cyber security
Windows 11 Home preinstalled and updated, bloatware free
Includes Logitech MK120 keyboard and optical mouse
Hand-built in the UK with a 3-year warranty

Specification:

Operating System: Windows 11 Home
Processor: 14th Gen Intel Core i5-14400
Memory (RAM): Kingston Technology 16GB DDR4 (upgradeable to 64GB DDR4)
Storage: Kingston Technology 1TB PCIE 4.0 NVMe M.2 SSD
Graphics: Intel UHD Graphics 730 (maximum resolution 7680 x 4320 pixels @ 60Hz using DisplayPort, 4096 x 2160 @ 60Hz using HDMI)
Motherboard: Gigabyte H610M Ultra Durable Motherboard
Case: LOGIX Small Form Factor
Connections:
Front –
2 x USB-A 3.0
2 x USB-A 2.0
3.5mm HD microphone & audio
Back:
2 x PS/2
1 x VGA
2 x DisplayPort
1 x HDMI
2 x USB-A 3.2 Gen 1
4 x USB-A 2.0
1 x RJ-45 Ethernet
3 x 3.5mm Audio
Networking:
Wired: Realtek 1Gbps GbE LAN
Wireless:Wireless: WiFi 6E 802.11ax
Peripherals: Logitech MK120 Wired Keyboard & Mouse
Warranty: 3 years - parts and collection included (UK mainland only)


Processor
Intel Core i5 14400 10 Core Processor 16 Threads, 3.5GHz up to 4.7GHz Turbo Raptor Lake Refresh Socket LGA 1700 20MB Cache

Processor Cores
10

Processor Threads
16

Core Clock Speed
3.50GHz

Core Boost Speed
4.70GHz

Memory
Kingston Technologies RAM 16GB No Heatsink DDR4 3200MHz System Memory
Voltage: 1.20V
Latency Timing: CL22
Speed: 3200MHz (PC4-25600)
2 x 8GB DIMM Memory
Intel XMP Profile Support

Memory Configuration
2 x 8GB
2 Lanes (2 occupied)

SSD Drive
Kingston NV3 (SNV3S/1000G) 1TB, NVMe M.2 Interface, PCIe 4.0, 2280 SSD, Read 6000 MB/s, Write 4000 MB/s
Data storage life
160 TBW
MTBF
1,500,000 hours
Interfaces/Ports
PCIe Gen4 x4 NVMe

Format
Gen4 x4 NVMe

Max Read/Write Speeds
Read: Up to 6000MB/S
Write: Up to 4000MB/S

Hard Drive
No Additional Drive Fitted

Optical Drive
No Optical Drive Fitted

Graphics
Intel UHD Graphics 730
Graphics Base Frequency
300 MHz
Graphics Max Dynamic Frequency
1.40 GHz
Graphics Output
eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units
32
Max Resolution (HDMI)
4096 x 2160 @ 60Hz
Max Resolution (DP)
7680 x 4320 @ 60Hz

Graphics Card I/O
No Graphics Card Fitted. Uses Intel On-Chip Graphics

Operating System
Microsoft Windows 11 Home 64bit English OEI DVD Operating Software - installed and up to Date. No Bloatware

Card Reader
No Card Reader Fitted

Networking
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
TP-Link Archer TX20E AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter
Wireless Standards:

IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/g/b 2.4 GHz
Bluetooth 5.2

WLAN Signal Rate:
5 GHz
11ax: Up to 1201 Mbps(dynamic)
11ac: Up to 867 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)

2.4 GHz
11ax: Up to 574 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)

Power Supply
300w TFX Pre-Fitted PSU

Motherboard
Gigabyte H610M S2H V3 DDR4 Ultra Durable Intel 1700 Socket Motherboard, Micro-ATX, 2x DDR4 Slots, 1x M.2 Socket, GbE LAN, 1x D-Sub / 2x DisplayPorts / 1x HDMI Port

Expansion Slot
CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
4 x SATA 6Gb/s connectors

Rear I/O
1 x PS/2 keyboard/mouse port
1 x D-Sub port
2 x DisplayPorts
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Clear CMOS jumper
1 x chassis intrusion header

Chassis
LOGIX Small Form Purpose Built Robust Chassis

Drive Bays
5.25" x 0
3.5" x 1
2.5" x 2

IO Ports
2 x USB 3.0
2 x USB 2.0
HD Mic
HD Audio
Power

Cooling
1 x 80mm fan included

Dimensions
321mm x 95mm x 283mm (W x H x D)

Package Weight
6.9 kg

Warranty
3 Years Parts & Labour Including Collect and Return (UK mainland only)
