Images are for illustrative purposes only, actual product may differ

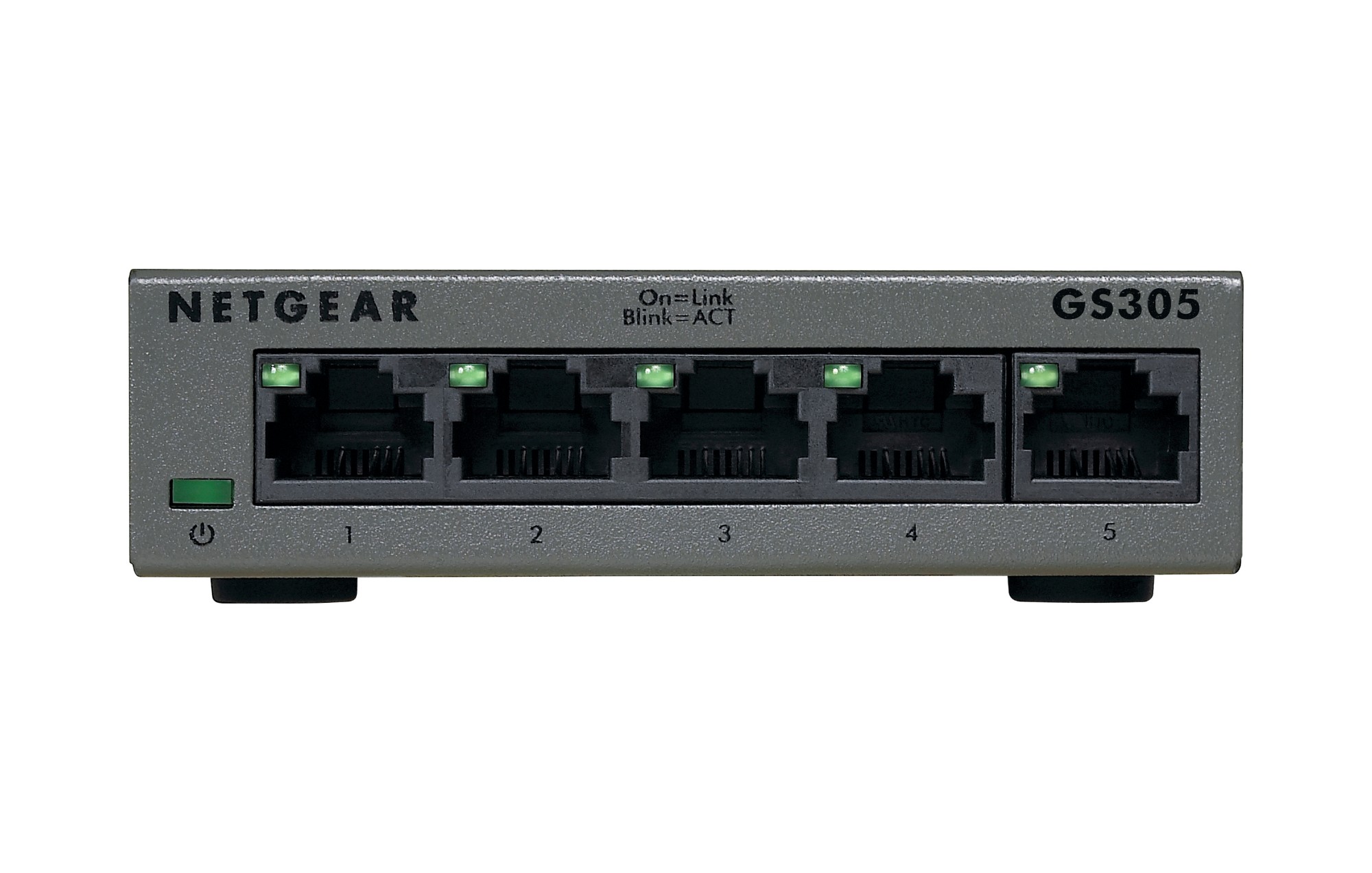

Netgear GS305 Unmanaged L2 Gigabit Ethernet (10/100/1000) Black

GS305v3, 5x RJ-45, 10/100/1000Mbps, 2K, 128 KB, 10 Gbps, metal
In stock
Part Code:
GS305-300PES
£46.00 £55.20
Netgear


NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly. The GS305P and GS308P with Power-over-Ethernet (PoE) provides power and data from a single Ethernet (CAT-5) cable to devices such as IP cameras, VoIP/Internet-based phones, wireless access points, etc. With these unmanaged plug-andplay switches, you can expand your network connections to multiple devices instantly. Just step up to GS316, GS324 or GS348 directly to avoid congestion due to stacking up lower port count switches and be ready for future expansion.
More Information
Part Code: GS305-300PES
EAN 0606449140095
Specification
Ports & interfaces
Copper ethernet cabling technology10BASE-T,100BASE-TX,1000BASE-T
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity5
Power connectorDC-in jack
Performance
Packet buffer memory128 MB
Mean time between failures (MTBF)3831422 h
Power
Power connectorDC-in jack
Power consumption (max)2.15 W
Technical details
Product colourBlack
Mean time between failures (MTBF)3831422 h
Housing materialMetal
Rack mountingNo
Management features
Switch typeUnmanaged
Quality of Service (QoS) supportYes
Switch layerL2
Network
Cable length detectionYes
Auto-sensingYes
Copper ethernet cabling technology10BASE-T,100BASE-TX,1000BASE-T
Networking standardsIEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x
Flow control supportYes
Auto MDI/MDI-XYes
10G supportNo
Data transmission
Jumbo frames9216
Latency (1 Gbps)2.6 µs
Packet buffer memory128 MB
MAC address table2000 entries
Switching capacity10 Gbit/s
Jumbo frames supportYes
Forwarding rate1.448 Mpps
Certificates
CertificationCE Mark FCC Part 15 Class B IC Class B RCM VCCI
Memory
Packet buffer memory128 MB
Design
Wall mountableYes
Product colourBlack
LED indicatorsActivity, Link, Power
Housing materialMetal
CertificationCE Mark FCC Part 15 Class B IC Class B RCM VCCI
Rack mountingNo
Indication
LED indicatorsActivity, Link, Power
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Operational conditions
Storage temperature (T-T)-20 - 70 °C
Storage relative humidity (H-H)0 - 95%
Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)0 - 90%
Operating altitude0 - 3000 m
Heat dissipation7.35 BTU/h
Weight & dimensions
Width101 mm
Depth94 mm
Height29 mm
Weight250 g
Manufacturer Netgear
PDF Url https://objects.icecat.biz/objects/
