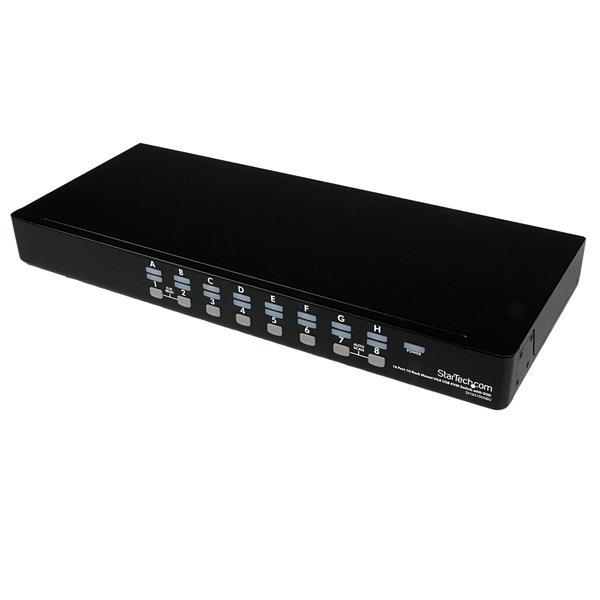

StarTech.com 16 Port 1U Rackmount USB KVM Switch with OSD

Details

Control up to 16 USB computers from a single keyboard, mouse and monitor
The SV1631DUSBU 16 Port 1U Rack Mountable USB KVM Switch with OSD lets you control 16 USB computers from a single console (USB keyboard, USB mouse, VGA monitor).
Convenient push-button and hot-key controls provide quick, reliable switching between connected computers while manual and auto-scan switching modes and an On Screen Display (OSD) offer additional control options.
Designed to ensure maximum space efficiency, the USB KVM switch features a slim 1U design that fits neatly into a server equipment rack/cabinet with the included brackets, and can be cascaded with multiple KVM switches to deliver control of up to 136 computers from this single switch. Rear cable connections help to eliminate cable tangles and minimize workspace disruption.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Extracting the keyboard strokes from the USB connection this KVM enables hot key support for wireless keyboard and mouse combo kits that use a single USB receiver
- On Screen Display adds the ability to rename connected computers for easy identification and provides per-port password security
- Supports cascading with other KVM switches for one spot control of up to 136 computers

More Information

More Information

Part Code:

SV1631DUSBU

EAN

0065030837224

Specification

Technical details
Product colour	Black
Rack mounting	Yes
Plug and Play	Yes
LED indicators	Yes
IP control	No
Audio support	No
Video
Maximum resolution	1920 x 1440 pixels
Ports & interfaces
Console USB ports quantity	2
Console ports	USB A,VGA (D-Sub)
Number of computers controlled	16
Keyboard port type	USB
Mouse port type	USB
Video port type	VGA
Audio connections	No
DC-in jack	Yes
Performance
Daisy chain	Yes
Plug and Play	Yes
Maximum resolution	1920 x 1440 pixels
Design
Product colour	Black
Rack mounting	Yes
LED indicators	Yes
Rack capacity	1U
Housing material	Steel
Display
Built-in display	No
Power
Input current	0.8 A
Output current	1.5 A
Power plug type	Type M
Output voltage	12 V
AC input voltage	110-240 V
Operational conditions
Operating temperature (T-T)	5 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	5 - 80%
Weight & dimensions
Width	540 mm
Depth	180 mm
Height	45 mm
Weight	3.1 kg
Package width	89 mm
Package depth	468 mm
Package height	264 mm
Package weight	3.53 kg
Packaging data
Package width	89 mm
Package depth	468 mm
Package height	264 mm
Package weight	3.53 kg
Packaging content
Manual	Yes
AC adapter included	Yes
Other features
IP control	No
Audio support	No

Manufacturer

StarTech.com

PDF Url

http://pdfs.icecat.biz/pdf/27996120-2043.pdf
