Presenting the Tecware Forge M Omni (TWCA-FORGEM-BKOL) — a sleek and secure micro-ATX chassis ideal for gamers, builders, and professionals alike. It brings together a high-airflow mesh design, tempered glass showcase, and key-lockable side panel for both aesthetics and peace of mind. Pre-installed fans ensure optimal cooling straight out of the box, with additional expansion support for future upgrades.
Physical & Structural
Model:
TWCA-FORGEM-BKOL (Forge M Omni, key-lockable)
Form Factor:
MicroATX & Mini-ITX compatible
Weight:
Around 4.9 kg
Construction Materials:
Polyhedral mesh front for airflow, tempered glass side panel (hinged and key lockable), top magnetic filter, bottom PSU filter, and 22 mm cable management space
Cooling & Fans
Included fans:
4 x 120 mm black fans (3 at the front intake, 1 at the rear exhaust)
Fan capacity:
Supports up to 6 fans total (front, top, rear)
Airflow design:
Full mesh front and multiple vents ensure high air intake and efficient thermal performance
Motherboard & Internal Clearance
Motherboard support:
Micro ATX and Mini ITX
GPU clearance:
Up to approximately 315 mm in length
CPU cooler clearance:
Up to approximately 160 mm
PSU compatibility:
Supports PSUs up to ~180 mm length (with HDD cage)
Drive Bays & Expansion
Drive bay configuration:
1 x 3.5 internal
1 x 3.5/2.5 removable cage
2 x 2.5 (mounted)
Expansion slots:
7 x PCIe slots
Front I/O
Ports:
2 x USB 3.0 SuperSpeed ports
HD Audio (headphone/microphone combo)
Radiator & Cooling Support
Radiator support:
Front: 120 mm / 240 mm
Rear: 120 mm
Top: 120 mm / 240 mm (if fans not installed)
Security & Design Features
Key-lockable tempered glass side panel:
Enhances physical security while granting easy access via hinge mechanism
Maintenance features:
Magnetic top dust filter and bottom PSU filter for easy cleaning
Cable management:
22 mm routing space for clean internal layout
Drive Bays
1 x 3.5
1 x 3.5/2.5
2 x 2.5
Included Fans
4 x 120 mm (3 front, 1 rear)
Max Fans Supported
Up to 6 fans
Radiator Support
Front: 120/240 mm; Top: 120/240 mm; Rear: 120 mm
I/O Ports
2 x USB 3.0, HD Audio
Security Feature
Hinged tempered glass with key lock
Filters
Magnetic top + bottom PSU filters
Cable Management
22 mm space
Dimensions
~379 x 205 x 429 mm
Physical & Structural
Model:
TWCA-FORGEM-BKOL (Forge M Omni, key-lockable)
Form Factor:
MicroATX & Mini-ITX compatible
Weight:
Around 4.9 kg
Construction Materials:
Polyhedral mesh front for airflow, tempered glass side panel (hinged and key lockable), top magnetic filter, bottom PSU filter, and 22 mm cable management space
Cooling & Fans
Included fans:
4 x 120 mm black fans (3 at the front intake, 1 at the rear exhaust)
Fan capacity:
Supports up to 6 fans total (front, top, rear)
Airflow design:
Full mesh front and multiple vents ensure high air intake and efficient thermal performance
Motherboard & Internal Clearance
Motherboard support:
Micro ATX and Mini ITX
GPU clearance:
Up to approximately 315 mm in length
CPU cooler clearance:
Up to approximately 160 mm
PSU compatibility:
Supports PSUs up to ~180 mm length (with HDD cage)
Drive Bays & Expansion
Drive bay configuration:
1 x 3.5 internal
1 x 3.5/2.5 removable cage
2 x 2.5 (mounted)
Expansion slots:
7 x PCIe slots
Front I/O
Ports:
2 x USB 3.0 SuperSpeed ports
HD Audio (headphone/microphone combo)
Radiator & Cooling Support
Radiator support:
Front: 120 mm / 240 mm
Rear: 120 mm
Top: 120 mm / 240 mm (if fans not installed)
Security & Design Features
Key-lockable tempered glass side panel:
Enhances physical security while granting easy access via hinge mechanism
Maintenance features:
Magnetic top dust filter and bottom PSU filter for easy cleaning
Cable management:
22 mm routing space for clean internal layout
Drive Bays
1 x 3.5
1 x 3.5/2.5
2 x 2.5
Included Fans
4 x 120 mm (3 front, 1 rear)
Max Fans Supported
Up to 6 fans
Radiator Support
Front: 120/240 mm; Top: 120/240 mm; Rear: 120 mm
I/O Ports
2 x USB 3.0, HD Audio
Security Feature
Hinged tempered glass with key lock
Filters
Magnetic top + bottom PSU filters
Cable Management
22 mm space
Dimensions
~379 x 205 x 429 mm
TECWARE Forge M Omni Micro-ATX Case - Key-Lockable Tempered Glass, High-Airflow Mesh Front, 4 x 120mm Fans Pre-Installed, mATX/ITX Support, Black
£79.74
£66.45
Out of stock
SKU
TWCA-FORGEM-BKOL
Tecware Forge M Omni Micro-ATX Case - Key-Lockable Tempered Glass, High-Airflow Mesh Front, 4 x 120mm Fans Pre-Installed, mATX/ITX Support, Black
See all Specs
Fast Dispatch
- Same-day dispatch available (order before cutoff)
- Next working day delivery available
- Tracking provided on every shipment
- Secure UK delivery
Need it urgently? Contact our team.
Why Buy From Etech Networks?
- Competitive pricing across leading brands
- Fast dispatch from our UK-based team
- Expert support when you need it
Purchase Orders Accepted
We accept purchase orders from eligible organisations.
Need Help Fast?
Quick support on compatibility, delivery, or ordering.
Secure Checkout
Card • Bank transfer • Purchase order

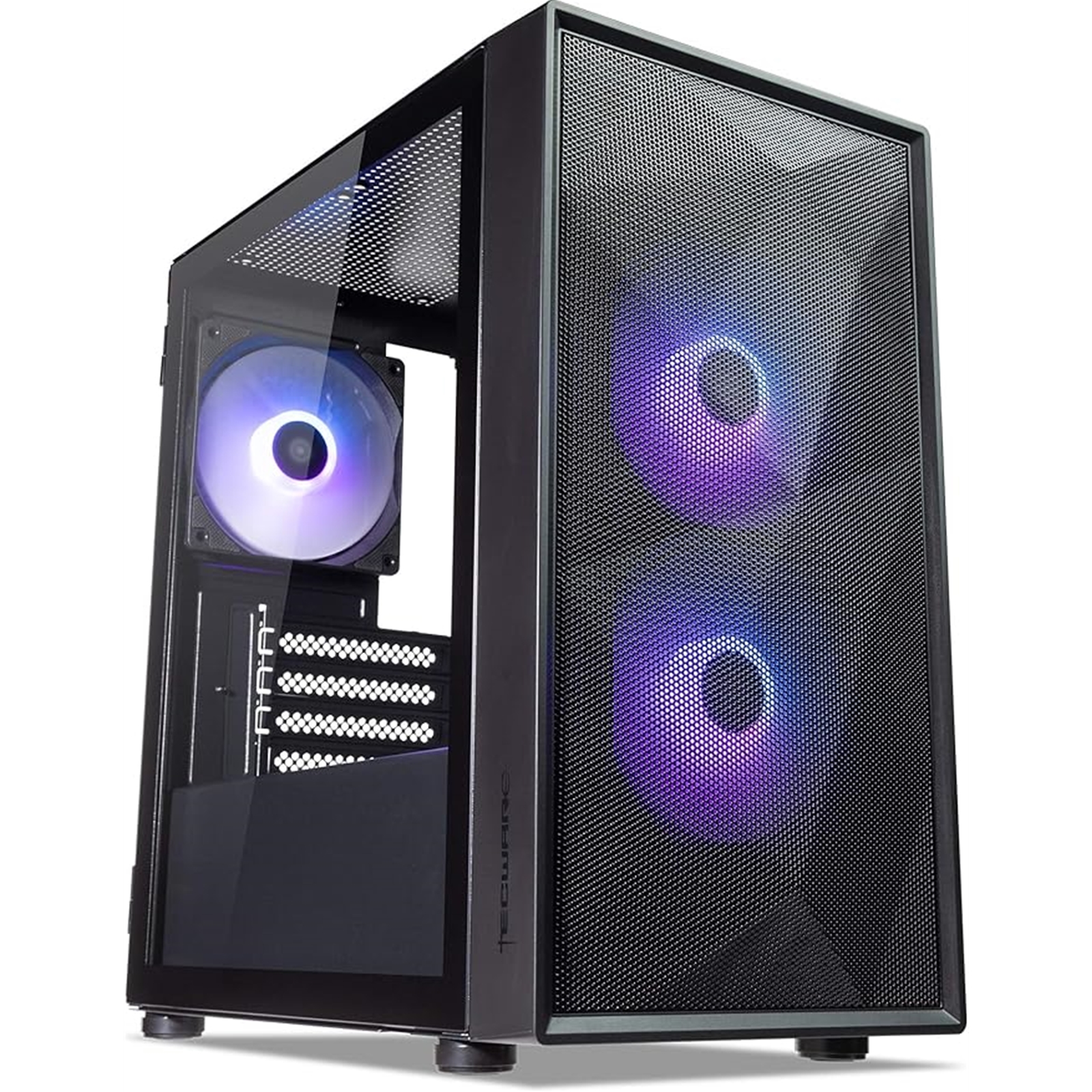

TECWARE Forge M2 mATX PC Case, Compact High Airflow Mesh Front Panel, 3 x ARGB Fans Included, Hinged Tempered Glass Door, Supports 240mm Radiator, mATX/ITX, Black
